Connect and disconnect Dataverse from a Git repository by using code

Use the ConnectToGit and DisconnectFromGit APIs to programmatically integrate your Microsoft Dataverse environment with Git source control. By using these APIs, you can connect individual solutions or entire environments to supported Git repositories and manage those connections through code.

Prerequisites

Before using these APIs, ensure you have:

• Access to a Microsoft Dataverse environment
• System administrator permissions
• Read and write access to a Git repository

ConnectToGit API

Creates a connection between a Dataverse solution or environment and a Git repository. By using this connection, you can manage source control for your Dataverse components.

Parameters

The ConnectToGit API accepts the following parameters:

ConnectionType parameter

The ConnectionType parameter controls whether to connect to the entire Dataverse environment or a specific solution.

GitProvider parameter

Use the GitProvider parameter to specify the type of Git provider you're using, either Azure DevOps or GitHub.

DisconnectFromGit API

Removes the Git connection from a Dataverse solution or environment, and disables source control integration.

Parameter

The DisconnectFromGit API has only one parameter.

Additional information

Here are a few parameter value options to specify when invoking DisconnectFromGit.

• Disconnect single solution: Provide SolutionUniqueName to disconnect a specific solution.
• Disconnect all solutions: Provide no parameters to disconnect all solution-level connections.
• Disconnect environment: Provide no parameters to disconnect the environment-level connection.

Examples

The following examples describe scenarios for using the ConnectToGit and DisconnectFromGit APIs:

• Connect your entire Dataverse environment to an Azure DevOps repository
• Connect to a GitHub repository
• Connect to a GitHub repository by using PowerShell
• Disconnect your entire Dataverse environment from Git source control
• Connect the first solution to a Git repository
• Connect extra solutions to the same Git repository after you connect the initial solution
• Disconnect a specific solution from Git source control while keeping other solutions connected

Connect your entire Dataverse environment to an Azure DevOps repository

This connection enables source control for all environment-level configurations and components.

Don't use these parameters with this connection:

• RootFolder
• SolutionUniqueName
• UpstreamBranch

POST [Organization URI]/api/data/v9.2/ConnectToGit HTTP/1.1
Accept: application/json
Content-Type: application/json; charset=utf-8
OData-MaxVersion: 4.0
OData-Version: 4.0

{
   "GitFolder": "yourGitfolderName",
   "Branch": "yourBranchName",
   "ConnectionType": 1,
   "GitProvider": 0,
   "Organization": "yourOrganizationName",
   "Project": "yourProjectName",
   "Repository": "yourRepositoryName"
}

HTTP/1.1 204 No Content
OData-Version: 4.0

private const int GitProviderAzureDevOps = 0;
private const int GitProviderGitHub = 1;
private const int ConnectionTypeEnvironment = 1;

static void ConnectDataverseEnvironment(
    IOrganizationService service,
    string gitFolderName,
    string branchName,
    string organizationName,
    string projectName,
    string repositoryName,
    OptionSetValue? gitProvider = null)
{
    // Validate required parameters
    ArgumentNullException.ThrowIfNull(service);
    ArgumentException.ThrowIfNullOrWhiteSpace(gitFolderName);
    ArgumentException.ThrowIfNullOrWhiteSpace(branchName);
    ArgumentException.ThrowIfNullOrWhiteSpace(organizationName);
    ArgumentException.ThrowIfNullOrWhiteSpace(projectName);
    ArgumentException.ThrowIfNullOrWhiteSpace(repositoryName);

    // Default to Azure Dev Ops
    gitProvider ??= new OptionSetValue(GitProviderAzureDevOps);

    ParameterCollection parameters = new()
    {
        { "GitFolder", gitFolderName },
        { "Branch", branchName },
        { "ConnectionType", new OptionSetValue(ConnectionTypeEnvironment) },
        { "GitProvider", gitProvider },
        { "Organization", organizationName },
        { "Project", projectName },
        { "Repository", repositoryName }
    };

    OrganizationRequest request = new()
    {
        RequestName = "ConnectToGit",
        Parameters = parameters
    };

     service.Execute(request);
}

Connect to a GitHub repository

Before you use the API to connect to GitHub, complete the setup steps to create the GitHub App, install it on the target repository, import its private key into Azure Key Vault, and create the Power Platform GitHub connection. For more information, see Connect to GitHub.

Create a GitHub App configuration record by using the Web API

Use the Dataverse OData Web API to create a githubappconfig record. Send a POST request with the GitHub App client ID, Key Vault URI, and key name.

You can use any HTTP client, such as Insomnia, Visual Studio Code REST Client, or curl, to make these calls. You need a bearer token for authentication. For more information, see Use the Microsoft Dataverse Web API.

POST {{DataverseOrgUrl}}/api/data/v9.2/githubappconfigs
Authorization: Bearer {{token}}
Content-Type: application/json

{
    "githubappid": "Iv23liBWoH9sf7xDrRe6",
    "keyvaulturi": "{{KeyVaultUri}}",
    "keyname": "demoGitHubKey"
}

After creating the GitHub App configuration record, assign the Key Vault Crypto User role to the Dataverse managed identity as described in Configure Key Vault role-based access control (RBAC).

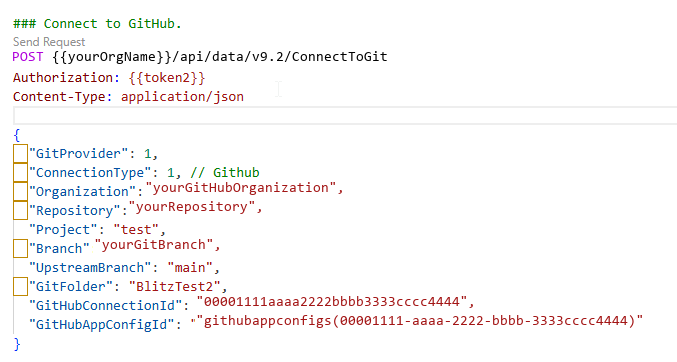

Call the ConnectToGit API

After you create the githubappconfig record and configure Key Vault RBAC, use the Dataverse Web API to establish the source control connection by calling the ConnectToGit action.

POST {{DataverseOrgUrl}}/api/data/v9.2/ConnectToGit
Authorization: Bearer {{token}}
Content-Type: application/json

{
    "GitProvider": 1,
    "ConnectionType": 1,
    "Organization": "YourGitHubOrg",
    "Repository": "YourRepo",
    "Project": "placeholder",
    "Branch": "yourBranch",
    "UpstreamBranch": "main",
    "GitFolder": "YourFolder",
    "GitHubConnectionId": "<connectionId>",
    "GitHubAppConfigId": "githubappconfigs(<recordId>)"
}

If you receive a successful response, the environment is connected to GitHub.

Connect to a GitHub repository by using PowerShell

The following PowerShell example creates the GitHub App configuration record, waits for the Dataverse managed identity to appear in Microsoft Entra ID, assigns the Key Vault Crypto User role to the managed identity, and calls the ConnectToGit action. If you already have a GitHub App configuration record, provide GitHubAppConfigId to skip the configuration and Key Vault role assignment steps.

Install and import the Az.Accounts, Az.KeyVault, and Az.Resources PowerShell modules before you run the example. Sign in with Connect-AzAccount using an account that has access to the Dataverse environment and permission to assign Key Vault roles.

If virtual network (VNET) support is enabled for the Dataverse environment, provide GitHubPAT. GitHub connections can't be used with virtual network support.

[CmdletBinding()]
param(
    [Parameter(Mandatory)]
    [string]$DataverseOrgUrl,

    [Parameter(Mandatory)]
    [string]$GitHubOrg,

    [Parameter(Mandatory)]
    [string]$GitHubRepo,

    [Parameter(Mandatory)]
    [string]$Branch,

    [Parameter(Mandatory)]
    [string]$GitFolder,

    [string]$GitHubAppClientId,

    [string]$KeyVaultName,

    [string]$KeyVaultKeyName,

    [string]$GitHubAppConfigId,

    [string]$GitHubConnectionId,

    [string]$GitHubPAT,

    [ValidateSet(0, 1)]
    [int]$ConnectionType = 1,

    [string]$UpstreamBranch,

    [string]$RootFolder,

    [string]$SolutionUniqueName
)

Set-StrictMode -Version 3.0
$ErrorActionPreference = "Stop"

if (($GitHubConnectionId -and $GitHubPAT) -or (-not $GitHubConnectionId -and -not $GitHubPAT)) {
    throw "Specify either -GitHubConnectionId or -GitHubPAT, but not both."
}

if (-not $GitHubAppConfigId) {
    foreach ($name in @('GitHubAppClientId', 'KeyVaultName', 'KeyVaultKeyName')) {
        if ([string]::IsNullOrWhiteSpace((Get-Variable -Name $name -ValueOnly))) {
            throw "Specify -$name when -GitHubAppConfigId is not provided."
        }
    }
}

$dataverseResource = $DataverseOrgUrl.TrimEnd('/')
$tokenResult = Get-AzAccessToken -ResourceUrl $dataverseResource -AsSecureString
$dataverseToken = [System.Net.NetworkCredential]::new('', $tokenResult.Token).Password

function Invoke-DataverseApi {
    param(
        [Parameter(Mandatory)]
        [string]$Method,

        [Parameter(Mandatory)]
        [string]$Endpoint,

        [object]$Body,

        [switch]$ReturnHeaders
    )

    $headers = @{
        Authorization      = "Bearer $dataverseToken"
        "OData-MaxVersion" = "4.0"
        "OData-Version"    = "4.0"
    }

    $request = @{
        Method      = $Method
        Uri         = "$dataverseResource/api/data/v9.2/$Endpoint"
        Headers     = $headers
        ContentType = "application/json; charset=utf-8"
    }

    if ($Body) {
        $request.Body = $Body | ConvertTo-Json -Depth 10
    }

    if ($ReturnHeaders) {
        return (Invoke-WebRequest @request).Headers
    }

    Invoke-RestMethod @request
}

$appConfigRecordId = $GitHubAppConfigId

if (-not $appConfigRecordId) {
    $keyVault = Get-AzKeyVault -VaultName $KeyVaultName
    $keyVaultUri = 'https://' + $KeyVaultName + '.vault.azure.net/'

    $appConfigBody = @{
        githubappid = $GitHubAppClientId
        keyvaulturi = $keyVaultUri
        keyname     = $KeyVaultKeyName
    }

    $responseHeaders = Invoke-DataverseApi `
        -Method POST `
        -Endpoint "githubappconfigs" `
        -Body $appConfigBody `
        -ReturnHeaders

    $entityIdHeader = [string]$responseHeaders["OData-EntityId"]
    if ($entityIdHeader -notmatch '\(([0-9a-f-]+)\)') {
        throw "Could not read the GitHub App configuration record ID from the Dataverse response."
    }

    $appConfigRecordId = $Matches[1]
    $managedIdentityName = "PPMI-githubappconfigmanagedidentity-$appConfigRecordId"

    $servicePrincipal = $null
    for ($attempt = 1; $attempt -le 60; $attempt++) {
        $servicePrincipal = Get-AzADServicePrincipal -DisplayName $managedIdentityName -ErrorAction SilentlyContinue
        if ($servicePrincipal) {
            break
        }

        Start-Sleep -Seconds 1
    }

    if (-not $servicePrincipal) {
        throw "The Dataverse managed identity was not found in Microsoft Entra ID. Check Dataverse System Jobs for GitHub App configuration errors."
    }

    $keyVaultScope = $keyVault.ResourceId
    if (-not $keyVaultScope) {
        $subscriptionId = (Get-AzContext).Subscription.Id
        $keyVaultScope = "/subscriptions/$subscriptionId/resourceGroups/$($keyVault.ResourceGroupName)/providers/Microsoft.KeyVault/vaults/$KeyVaultName"
    }

    $keyVaultCryptoUserRoleId = "12338af0-0e69-4776-bea7-57ae8d297424"
    $existingAssignment = Get-AzRoleAssignment `
        -ObjectId $servicePrincipal.Id `
        -RoleDefinitionId $keyVaultCryptoUserRoleId `
        -Scope $keyVaultScope `
        -ErrorAction SilentlyContinue

    if (-not $existingAssignment) {
        New-AzRoleAssignment `
            -ObjectId $servicePrincipal.Id `
            -RoleDefinitionId $keyVaultCryptoUserRoleId `
            -Scope $keyVaultScope | Out-Null
    }
}

$connectBody = @{
    GitProvider          = 1
    ConnectionType       = $ConnectionType
    Organization         = $GitHubOrg
    Repository           = $GitHubRepo
    Project              = "placeholder"
    Branch               = $Branch
    GitFolder            = $GitFolder
    GitHubAppConfigId    = "githubappconfigs($appConfigRecordId)"
}

if ($GitHubConnectionId) { $connectBody.GitHubConnectionId = $GitHubConnectionId }
if ($GitHubPAT)          { $connectBody.GitHubPAT          = $GitHubPAT }
if ($UpstreamBranch)     { $connectBody.UpstreamBranch     = $UpstreamBranch }
if ($RootFolder)         { $connectBody.RootFolder         = $RootFolder }
if ($SolutionUniqueName) { $connectBody.SolutionUniqueName = $SolutionUniqueName }

Invoke-DataverseApi -Method POST -Endpoint "ConnectToGit" -Body $connectBody
Write-Host "Connected Dataverse Git integration to GitHub."

Disconnect your entire Dataverse environment from Git source control

This action removes the environment-level Git connection. Don't use the SolutionUniqueName parameter for this operation. Dataverse automatically identifies and removes the environment-level Git connection.

POST [Organization URI]/api/data/v9.2/DisconnectFromGit HTTP/1.1
Accept: application/json
Content-Type: application/json; charset=utf-8
OData-MaxVersion: 4.0
OData-Version: 4.0

HTTP/1.1 204 No Content
OData-Version: 4.0

static void DisconnectDataverseEnvironment(IOrganizationService service) {

   // Validate required parameters
    ArgumentNullException.ThrowIfNull(service);

   OrganizationRequest request = new("DisconnectFromGit");

   service.Execute(request);

}

Connect the first solution to a Git repository

This connection establishes the repository link and folder structure for solution-level source control to the first solution in an environment.

You need to include values for these parameters to specify the solution:

• RootFolder
• SolutionUniqueName

POST [Organization URI]/api/data/v9.2/ConnectToGit HTTP/1.1
Accept: application/json
Content-Type: application/json; charset=utf-8
OData-MaxVersion: 4.0
OData-Version: 4.0

{
   "GitFolder": "yourGitfolderName",
   "Branch": "yourBranchName",
   "ConnectionType": 1,
   "GitProvider": 0,
   "Organization": "yourOrganizationName",
   "Project": "yourProjectName",
   "Repository": "yourRepositoryName",
   "RootFolder": "yourRootFolderName",
   "SolutionUniqueName": "yourSolutionUniqueName"
}

HTTP/1.1 204 No Content
OData-Version: 4.0

private const int ConnectionTypeSolution = 0;

static void ConnectFirstSolution(
    IOrganizationService service,
    string gitFolderName,
    string branchName,
    string organizationName,
    string projectName,
    string repositoryName,
    string rootFolderName,
    string solutionUniqueName,
    OptionSetValue? gitProvider = null)
{
    // Validate required parameters
    ArgumentNullException.ThrowIfNull(service);
    ArgumentException.ThrowIfNullOrWhiteSpace(gitFolderName);
    ArgumentException.ThrowIfNullOrWhiteSpace(branchName);
    ArgumentException.ThrowIfNullOrWhiteSpace(organizationName);
    ArgumentException.ThrowIfNullOrWhiteSpace(projectName);
    ArgumentException.ThrowIfNullOrWhiteSpace(repositoryName);
    ArgumentException.ThrowIfNullOrWhiteSpace(rootFolderName);
    ArgumentException.ThrowIfNullOrWhiteSpace(solutionUniqueName);

    // Default to Azure Dev Ops
    gitProvider ??= new OptionSetValue(GitProviderAzureDevOps);

    ParameterCollection parameters = new()
    {
        { "GitFolder", gitFolderName },
        { "Branch", branchName },
        { "ConnectionType", new OptionSetValue(ConnectionTypeSolution) },
        { "GitProvider", gitProvider },
        { "Organization", organizationName },
        { "Project", projectName },
        { "Repository", repositoryName },
        { "RootFolder", rootFolderName },
        { "SolutionUniqueName", solutionUniqueName }
    };

    OrganizationRequest request = new()
    {
        RequestName = "ConnectToGit",
        Parameters = parameters
    };

    service.Execute(request);
}

Connect extra solutions to the same Git repository after you connect the initial solution

After you connect the first solution, you only need the solution-specific parameters. You inherit the repository connection details from the initial connection.

Set only these parameters:

• SolutionUniqueName
• Branch
• GitFolder

POST [Organization URI]/api/data/v9.2/ConnectToGit HTTP/1.1
Accept: application/json
Content-Type: application/json; charset=utf-8
OData-MaxVersion: 4.0
OData-Version: 4.0

{
   "GitFolder": "yourGitfolderName",
   "Branch": "yourBranchName",
   "SolutionUniqueName": "yourSolutionUniqueName"
}

HTTP/1.1 204 No Content
OData-Version: 4.0

static void ConnectExtraSolution(
   IOrganizationService service,
   string gitFolderName,
   string branchName,
   string solutionUniqueName)
{
   // Validate required parameters
   ArgumentNullException.ThrowIfNull(service);
   ArgumentException.ThrowIfNullOrWhiteSpace(gitFolderName);
   ArgumentException.ThrowIfNullOrWhiteSpace(branchName);
   ArgumentException.ThrowIfNullOrWhiteSpace(solutionUniqueName);

   ParameterCollection parameters = new()
   {
         { "GitFolder", gitFolderName },
         { "Branch", branchName },
         { "SolutionUniqueName", solutionUniqueName }
   };

   OrganizationRequest request = new()
   {
         RequestName = "ConnectToGit",
         Parameters = parameters
   };

   service.Execute(request);
}

Disconnect a specific solution from Git source control while keeping other solutions connected

Use this approach to remove source control for one solution without affecting others.

POST [Organization URI]/api/data/v9.2/DisconnectFromGit HTTP/1.1
Accept: application/json
Content-Type: application/json; charset=utf-8
OData-MaxVersion: 4.0
OData-Version: 4.0

{
   "SolutionUniqueName": "yourSolutionUniqueName"
}

HTTP/1.1 204 No Content
OData-Version: 4.0

static void DisconnectSolution(IOrganizationService service,
    string solutionUniqueName)
{

   // Validate required parameters
    ArgumentNullException.ThrowIfNull(service);
    ArgumentException.ThrowIfNullOrWhiteSpace(solutionUniqueName);

    ParameterCollection parameters = new()
    {
        { "SolutionUniqueName", solutionUniqueName }
    };

    OrganizationRequest request = new()
    {
        RequestName = "DisconnectFromGit",
        Parameters = parameters
    };

    service.Execute(request);
}

Error handling

Neither the ConnectToGit nor the DisconnectFromGit API returns a value when it completes successfully. When an API fails, it returns an error.

Common error scenarios include:

• Invalid credentials: Ensure you have valid authentication to the Git provider.
• Repository not found: Verify the organization, project, and repository names.
• Permission denied: Ensure your Dataverse account has source control management permissions.
• Solution not found: Verify the SolutionUniqueName exists in your environment.
• Branch does not exist: Confirm the specified branch exists in the repository.

Support and additional resources

For more information about source control integration with Dataverse, see:

• Overview of Git Integration in Power Platform
• ConnectToGit Action
• DisconnectFromGit Action
• CommitToGit Action
• RefreshChangesFromGit Action
• PullChangesFromGit Action
